Enhance DataSource in BI report

Let me give you some background who are working in ABAP only and never seen any BI transaction.

In BI/BW report data source is ECC and here its OFI_AP_4 for Financial Accounting: Vendors. In this structure we have standard fields which will be pulled by BI. But if there is some requirement like in BI system some more fields need to be pulled then the Enhance DataSource in BI report comes into picture.

Go to RSA6 tcode and follow the path for which we need to enhance the standard BI report.

Here we are enhancing the Financial Accounting: Vendors.

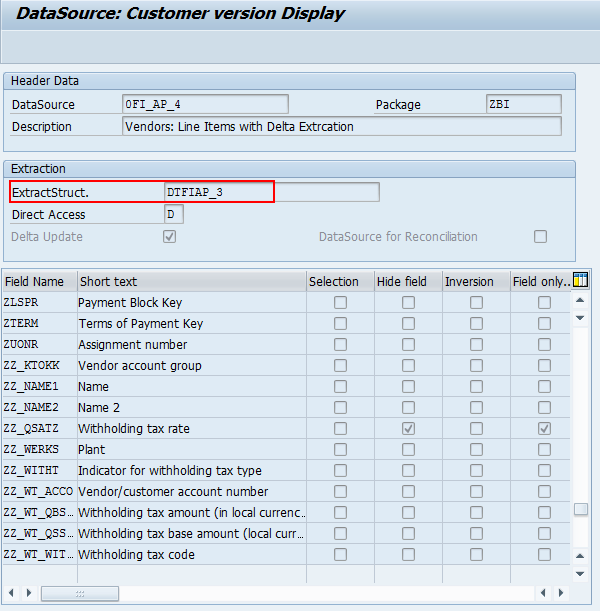

 Double click on the ExtractStruct.

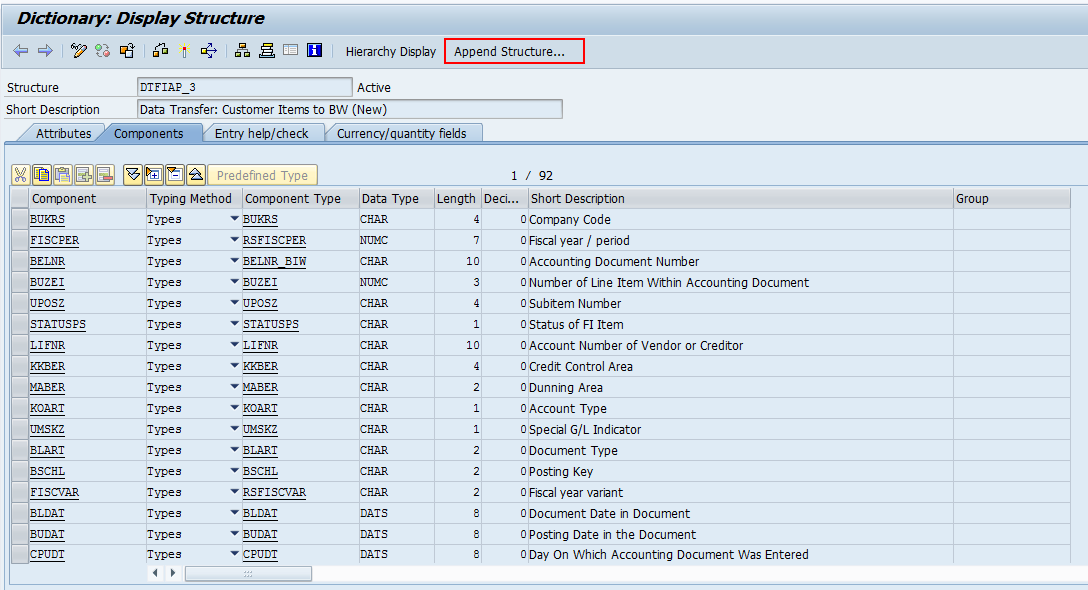

Do Append Structure for new fields in the BI report.

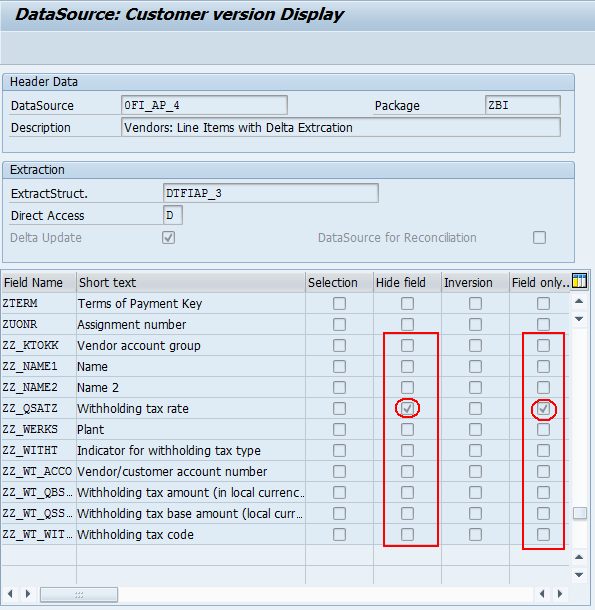

Don’t forget to remove the check like below:

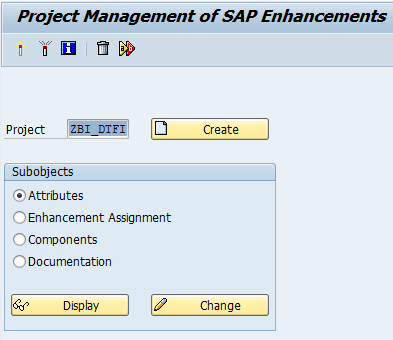

Go to CMOD and create a project:

Use the Enhancement Assignment (RSAP0001):

We need to implement the component EXIT_SAPLRSAP_001:

CODE:

*&---------------------------------------------------------------------*
*&  Include           ZXRSAU01
*&---------------------------------------------------------------------*

  DATA: it_dtfiap_3 TYPE TABLE OF dtfiap_3,
        wa_dtfiap_3 TYPE dtfiap_3,
        lit_dtfiap_3 TYPE TABLE OF dtfiap_3.

  TYPES: BEGIN OF t_lfa1,
          lifnr TYPE lifnr,     " Vendor
          name2 TYPE name2_gp,  " Vendor name
          ktokk TYPE ktokk,     " Vendor Group
          werks TYPE werks_d,   " Plant
         END OF t_lfa1.

  TYPES: BEGIN OF t_t001w,
           werks TYPE werks_d,
           name1 TYPE name1,
         END OF t_t001w.

  TYPES: BEGIN OF t_with_item,
              bukrs TYPE bukrs,
              belnr TYPE belnr_d,
              gjahr TYPE gjahr,
              buzei TYPE buzei,
              witht TYPE witht,
              wt_withcd TYPE wt_withcd,
              wt_qsshh TYPE wt_bs,
              wt_qbshh TYPE wt_wt,
              wt_acco TYPE wt_acno,
              qsatz TYPE WT_QSATZ,
         END OF t_with_item.

  DATA: it_lfa1 TYPE STANDARD TABLE OF t_lfa1 INITIAL SIZE 0,
        wa_lfa1 TYPE t_lfa1,
        lit_lfa1 TYPE STANDARD TABLE OF t_lfa1 INITIAL SIZE 0.

  DATA: it_t001w TYPE STANDARD TABLE OF t_t001w INITIAL SIZE 0,
        wa_t001w TYPE t_t001w.

  DATA: it_with_item TYPE STANDARD TABLE OF t_with_item INITIAL SIZE 0,
        wa_with_item TYPE t_with_item.

  CASE i_datasource.

    WHEN '0FI_AP_4'.

      REFRESH it_dtfiap_3.

      it_dtfiap_3[] = c_t_data[].

      lit_dtfiap_3[] = it_dtfiap_3[].

      SORT lit_dtfiap_3[] BY lifnr.
      DELETE ADJACENT DUPLICATES FROM lit_dtfiap_3[] COMPARING lifnr.
      SELECT lifnr
             name2
             ktokk
             werks
        FROM lfa1
        INTO TABLE it_lfa1
        FOR ALL ENTRIES IN lit_dtfiap_3
        WHERE lifnr = lit_dtfiap_3-lifnr.

      IF sy-subrc = 0.
        SORT it_lfa1 BY lifnr.

        SORT lit_lfa1[] BY werks.
        DELETE ADJACENT DUPLICATES FROM lit_lfa1[] COMPARING werks.
        SELECT werks
               name1
          FROM t001w
          INTO TABLE it_t001w
          FOR ALL ENTRIES IN lit_lfa1
          WHERE werks = lit_lfa1-werks.

        IF sy-subrc = 0.
          SORT it_t001w BY werks.
        ENDIF.
      ENDIF.

      SELECT bukrs
             belnr
             gjahr
             buzei
             witht
             wt_withcd
             wt_qsshh
             wt_qbshh
             wt_acco
             qsatz
        FROM with_item
        INTO TABLE it_with_item
        FOR ALL ENTRIES IN it_dtfiap_3
        WHERE bukrs = it_dtfiap_3-bukrs AND
              belnr = it_dtfiap_3-belnr AND
              gjahr = it_dtfiap_3-gjahr AND
              buzei = it_dtfiap_3-buzei.
        IF sy-subrc = 0.
          SORT it_with_item BY bukrs belnr gjahr buzei.
        ENDIF.

      LOOP AT it_dtfiap_3 INTO wa_dtfiap_3.

        READ TABLE it_lfa1 INTO wa_lfa1 WITH KEY lifnr = wa_dtfiap_3-lifnr BINARY SEARCH.
        IF sy-subrc = 0.
          wa_dtfiap_3-zz_name2 = wa_lfa1-name2.  " Vendor name
          wa_dtfiap_3-zz_ktokk = wa_lfa1-ktokk.  " Vendor Group
          wa_dtfiap_3-zz_werks = wa_lfa1-werks.  " Plant

          READ TABLE it_t001w INTO wa_t001w WITH KEY werks = wa_lfa1-werks BINARY SEARCH.
          IF sy-subrc = 0.
            wa_dtfiap_3-zz_name1 = wa_t001w-name1.     " Plant Description
          ENDIF.
        ENDIF.

        READ TABLE it_with_item INTO wa_with_item with key bukrs = wa_dtfiap_3-bukrs
                                                           belnr = wa_dtfiap_3-belnr
                                                           gjahr = wa_dtfiap_3-gjahr
                                                           buzei = wa_dtfiap_3-buzei
                                                           BINARY SEARCH.
        IF sy-subrc = 0.
             wa_dtfiap_3-zz_witht = wa_with_item-witht.
             wa_dtfiap_3-zz_wt_withcd = wa_with_item-wt_withcd.
             wa_dtfiap_3-zz_wt_qsshh = wa_with_item-wt_qsshh.
             wa_dtfiap_3-zz_wt_qbshh = wa_with_item-wt_qbshh.
             wa_dtfiap_3-zz_wt_acco = wa_with_item-wt_qbshh.
             wa_dtfiap_3-zz_qsatz = wa_with_item-qsatz.
        ENDIF.

        MODIFY  it_dtfiap_3 FROM  wa_dtfiap_3.
        CLEAR : wa_dtfiap_3. ", wa_vbrp, wa_vbrk.



      ENDLOOP.
      REFRESH c_t_data.
      c_t_data[] = it_dtfiap_3[].


  ENDCASE.

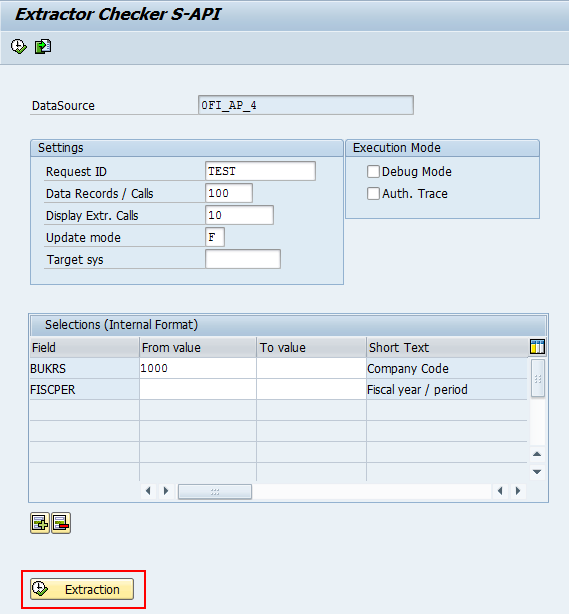

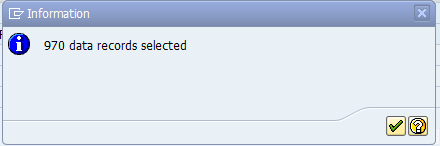

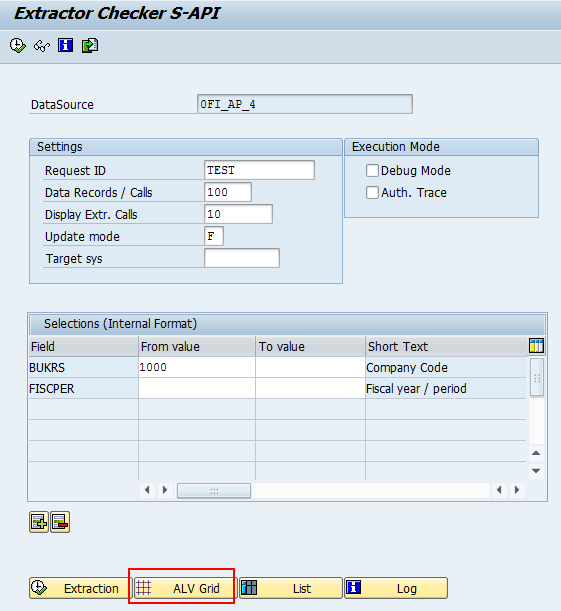

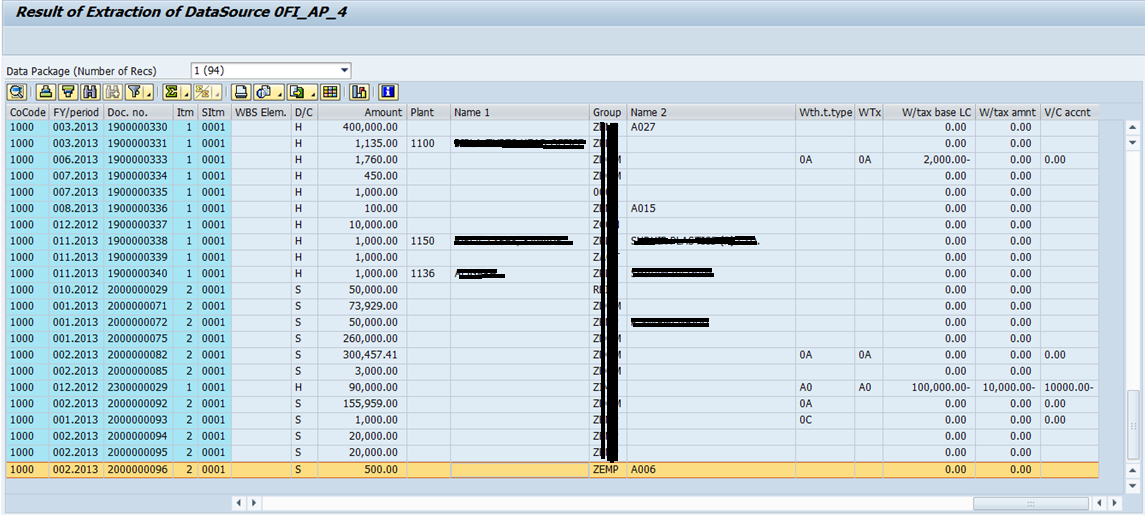

Now its time to run the report and see the output:
