Wednesday 28 May 2014

Debugging Background task in Workflow


It is always said that testing workflow is a difficult job. It will more difficult when the WF task is a background task. Because only putting a breakpoint in the background task method will not go in debugging.

Debug in WF means we are debugging some code in the BO-method or Class-method that is assigned to some WF task.

You can follow the below steps to debug a background task.

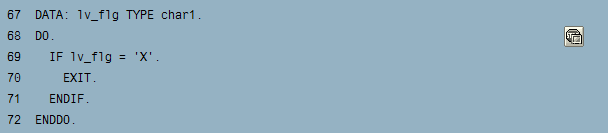

  • Put a break point inside your BO-method.  (Write the sample code DO.. ENDDO to make it infinite loop so that an entry get created in SM50)


  • Execute your WF.

  • Go to SM50.
  • Select the particular record.

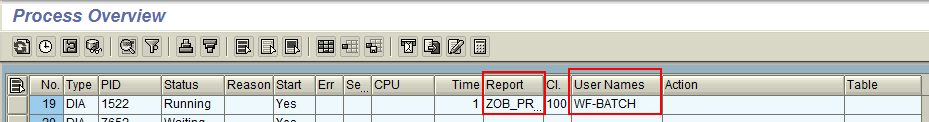

   (You can see the BO name as Report and WF-BATCH as User Name)

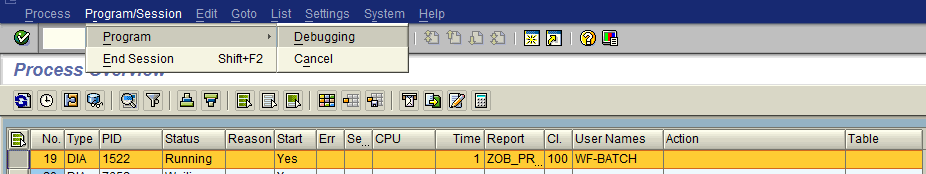

  • Program/Session – Program – Debugging

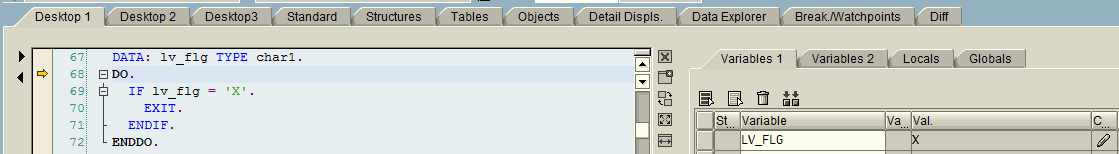

  • Assign LV_FLG = ‘X’ so that you can exit from the infinite loop.



Note: Basically the background task escapes all the break point.
Here we have done with a infinite loop (DO.. ENDDO) and the same will appear in SM50 (process overview) with Running status. From there (SM50) you can now able to debug the code in foreground.
